TM-2030-RV
⭐ Bestselling Battery Monitor

Bogart Engineering Trimetric TM-2030 Battery monitor

🇺🇸 Made in USA 3-Year Warranty Engineer Support
$165.00

Trimetric TM-2030 RV Battery Monitor

Reliable. Accurate. Built to Last.

✔️ For 12V, 24V, or 48V battery systems
✔️ See battery % full, amps, volts, and amp-hours used
✔️ Alerts you before your battery is dangerously low
✔️ Compatible with solar charge controllers


⚠️ Note: You’ll also need a 100A or a 500A shunt and wiring harness to complete installation.

🏕️ Power Confidence for Off-Grid & RV Life

Never guess how much power remains in your battery bank. The TM‑2030 Battery Monitor shows exactly how full your battery is, how much energy you’ve used, and when it’s time to recharge — before the lights go out.

Perfect for:

  • RVs & travel trailers

  • Off-grid cabins

  • Tiny homes & solar setups

  • Marine battery systems

🛠️ Top Features

✅ Accurate battery monitoring — Tracks amps in/out, voltage, and % full
✅ Works with all major battery types — Lead-acid, AGM, lithium (LiFePO4), etc.
✅ Settable low-battery alarms — Protect your system and your trip
✅ Easy programming menu — No need to be an engineer
✅ Connects to computer — Optional data logging and firmware upgrades
✅ Surface mount or flush panel — Choose your installation style
✅ Built to last — Proudly engineered, manufactured and supported in the USA

📦 What’s Included:

  • TM‑2030 monitor (surface or flush mount)

  • Instruction manual

🧰 What You’ll Also Need (Not Included):

  • 100A or 500A current shunt

  • Wiring harness (4-conductor cable)

💬 What Our Customers Say

⭐️⭐️⭐️⭐️⭐️
“Everything has worked perfectly for 7 years. Bogart obviously produces a quality product!”
— Larry C., Oregon

⭐️⭐️⭐️⭐️⭐️
“We’ve had years of contended service from our TM-2030 monitor. Easy to use and very dependable.”
— Steve M., Full-time RVer

⭐️⭐️⭐️⭐️⭐️
“I installed it in my trailer years ago. Sold it 4 years ago — and the new owner still loves it!”
— Dan B., Arizona

📦 Shipping & Warranty

  • Ships in 1–2 business days from the USA

  • 3-year manufacturer warranty

  • 30-day no-hassle returns

✅ Why Choose Bogart Engineering?

  • Trusted by off-grid homeowners, RV'ers, and professionals for over 30 years

  • Highly rated U.S.-based support

  • Time and Field-tested durability and dependability

TM-2030: Wall Mount
$165.00
💡 Save 10% — buy as a kit
All-Inclusive Kit from $460 — save $51+ → TriMetric BMS Kit from $344 — save $38+ → Monitor + WiFi Kit from $311 — save $35+ →

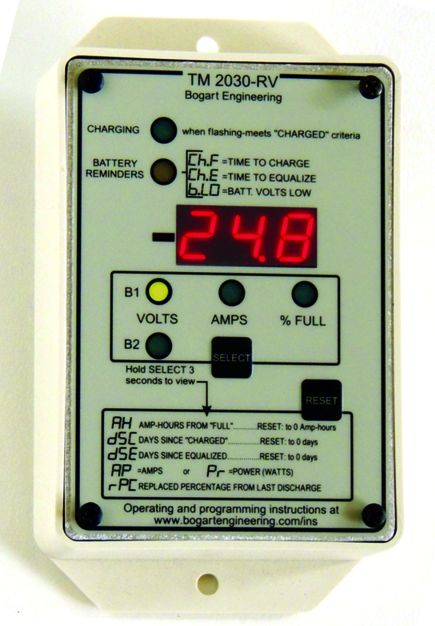

TM-2030-RV: 4¼"H × 3"W × 1⅜"D — white surface-mount enclosure
TM-2030-A: 4½" × 4¾" panel, 1⅛" max depth — fits double-gang box

Display: Volts (B1 & B2), Amps, Watts, % Full, Amp-hours from full, rPC, Days since charged, Days since equalized
Voltage range: 8–65V DC (12V, 24V, 36V, 48V systems)
Alarm: Audible low-battery alarm, adjustable threshold
Serial output: 5V ASCII data stream of all real-time readings
WiFi: Requires WF-2030 module (sold separately or in kits)
Bogart Engineering Trimetric TM-2030 Battery monitor unit · Installation instructions & quick-start guide
Note: Shunt and wiring harness required for installation — sold separately or included in kits.
Warranty: 3 years against manufacturing defects. Any non-conforming product will be replaced or repaired at Bogart Engineering's discretion.

Returns: 30-day return policy for unused products in original condition.

Support: Email bogart@bogartengineering.com or call (831) 338-0616. You'll reach the engineers who designed the product.
Compatible with 12V, 24V, 36V, and 48V battery systems. Works with all battery chemistries. Requires a shunt (100A, 500A, or 1000A) and 4-conductor wiring harness for installation — sold separately or included in kits.
Why TriMetric

Built different. Built better.

35 years of engineering refinement, made in the USA, supported by the people who designed it.

🔴

Sunlight-readable red LED display

The TM-2030's crisp red LED display is visible from across the room in full sunlight — and won't ruin your night vision during nighttime checks. LCD displays wash out in the sun and destroy dark adaptation. Red LED doesn't.

📡

200+ ft WiFi range

The WF-2030 connects over WiFi — not Bluetooth. That means 200+ foot range, not 30. Monitor from inside your house while your batteries are in a separate building, at the bow while batteries are stern, or anywhere on your property.

🌐

Remote web portal — no subscription

Create a free account at wf2030.bogartengineering.com and your battery data follows you everywhere. Check voltage, state of charge, solar input, and temperature from anywhere in the world. Free account — no monthly fees, ever.

⚡

Amp-hour based charge termination

Think of your battery like a bank account. Every amp you draw is a withdrawal. To keep your battery healthy, you don't just repay what you borrowed — you repay the principal plus interest to offset charging inefficiency.

The SC-2030 and TM-2030 work together to ensure every charge cycle repays the full debt. You set the exact overcharge percentage for your battery's efficiency. Voltage-only chargers stop when the balance looks right. Ours stops when the math is right — eliminating sulfation in lead-acid batteries after every cycle.

🇺🇸

Designed & built in Los Gatos, California

Every TriMetric product has been designed and manufactured in our Northern California facility since 1989. Not assembled — manufactured. Every unit tested before it ships.

🛠️

Engineer-direct support

When you email or call Bogart Engineering, you talk to the engineers who designed the product. Not a call center. Not a support ticket system. The actual people who wrote the firmware and drew the schematics. That's included in the price, for the life of the product.
